Name: KL11 Tek eylemli çubuk mühürleri Hareketli makineler için hidrolik silindirli çubuk mühürleri
Brand: Kelong
SKU: KL11
Price: 1 USD
Availability: InStock
Rating: 4.6 (110 reviews)

Home > Ürünler > Hidrolik Çubuk Keçeleri >

KL11 Tek eylemli çubuk mühürleri Hareketli makineler için hidrolik silindirli çubuk mühürleri

KL11 Tek eylemli çubuk mühürleri

Tek eylemli çubuk mühürleri Hidrolik

Hidrolik Silindir Çubukları

Menşe yeri:

Çin

Marka adı:

Kelong

Sertifika:

ISO9001 / IRIS

Model numarası:

KL11

Request A Quote

Product Details

Tarzı:

Hidrolik Silindir Çubukları

Sıcaklık (max) °C:

-30/+100

Basınç (max) bar:

400

Malzeme:

NBR / FABRIC NBR / POM

Kaydırma Hızı (maksimum) - m/s:

0.5

Uygulama:

Endüstriyel silindirler / Mobil makineler / Standart hidrolik silindirler

Payment & Shipping Terms

Ambalaj bilgileri:

OPP Torba

Teslim süresi:

7-15 iş günü

Ödeme koşulları:

L/C, T/T, Paypal

Yetenek temini:

100.000 adet / ay

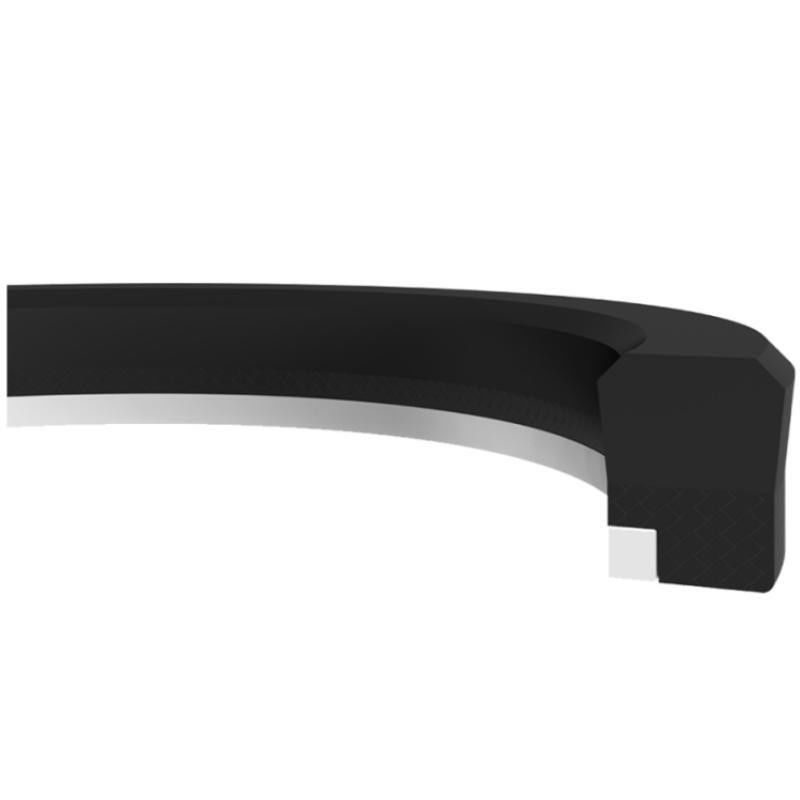

KL11 tek eylemli hidrolik çubuk mühürü kumaş elastomer halka ve termoplastik ekstrüzyon halkasından oluşur.

Avantajlar

• Yüksek önceden yükleme ve elastomer malzemesi ile düşük basınçlarda çok iyi bir mühürleme

• Yedek halka nedeniyle yüksek ekstrüzyon direnci

• Yüksek aşınma direnci

• Basit kanat tasarımı

Uygulama Alanı

• Standart hidrolik silindirler

• Baskı makineleri

• Hareketli makineler

• Endüstriyel silindirler

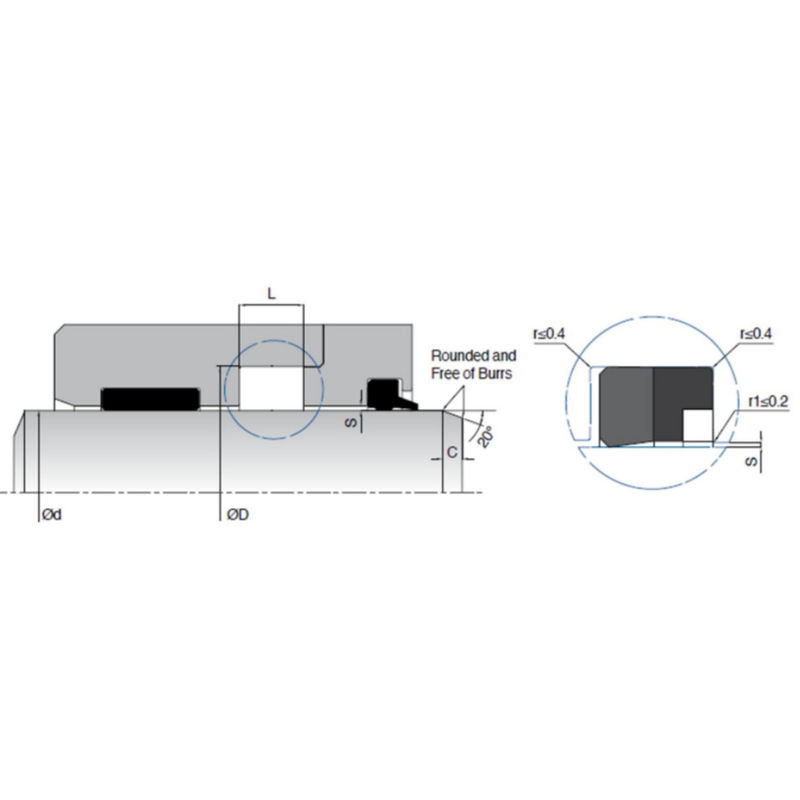

	d (f8)	D (H9)	L (+0,2/-0)	C	Malzeme
KL11-006	6	14	6.5	5	NBR
KL11-012	12	23	7.5	5	NBR
KL11-015	15	27	7	5	NBR
KL11-016	16	28	7.5	5	NBR
KL11-016/1	16	24	7	5	NBR
KL11-018	18	26	6.4	5	NBR
KL11-018/1	18	28	6.3	5	NBR
KL11-018/2	18	30	7.5	5	NBR
KL11-020	20	30	8	5	NBR
KL11-020/1	20	27	6	5	NBR
KL11-020/2	20	28	6.3	5	NBR
KL11-020/3	20	28	7	5	NBR
KL11-020/4	20	30	8.5	5	NBR
KL11-020/5	20	28	5.6	5	NBR
KL11-022	22	32	7.5	5	NBR
KL11-022/1	22	29	5	5	NBR
KL11-022/2	22	30	7	5	NBR
KL11-022/3	22	32	10	5	NBR
KL11-022/4	22	34	9.5	5	NBR
KL11-022/5	22	35	10	5	NBR
KL11-025	25	38	9.5	5	NBR
KL11-025/1	25	33	6	5	NBR
KL11-025/2	25	35	8	5	NBR
KL11-025/3	25	33	6.4	5	NBR
KL11-025/4	25	35	9	5	NBR
KL11-025/5	25	38	10	5	NBR
KL11-025/6	25.4	38.1	10	5	NBR
KL11-025/7	25	33	7	5	NBR
KL11-028	28	38	8	5	NBR
KL11-028/1	28	41	9.5	5	NBR
KL11-028/2	28	36	6.4	5	NBR
KL11-028/3	28	40	9.5	5	NBR
KL11-028/4	28	41	10	5	NBR
KL11-028/5	28.57	39.68	9.5	5	NBR
KL11-030	30	40	10.5	5	NBR
KL11-030/1	30	38	6.5	5	NBR
KL11-030/2	30	40	7	5	NBR
KL11-030/3	30	40	7.5	5	NBR
KL11-030/4	30	45	9	5	NBR
KL11-030/5	30	50	14.5	5	NBR
KL11-031	31.75	47.62	11.7	5	NBR
KL11-032	32	40	9	5	NBR
KL11-032/1	32	42	11	5	NBR
KL11-032/2	32	45	10	5	NBR
KL11-032/3	32	40	5	5	NBR
KL11-032/4	32	40	8.5	5	NBR
KL11-034	34.92	50.8	8.6	5	NBR
KL11-035	35	45	10.5	5	NBR
KL11-035/1	35	50	10.5	5	NBR
KL11-035/2	35	45	10	5	NBR
KL11-035/3	35	50	11.5	5	NBR
KL11-035/4	35	43	6	5	NBR
KL11-036	36	43	6.5	5	NBR
KL11-036/1	36	44	6.4	5	NBR
KL11-036/2	36	46	8.5	5	NBR
KL11-036/3	36	48	12	5	NBR
KL11-036/4	36	48	9.5	5	NBR
KL11-038	38	55	10.5	5	NBR
KL11-038/1	38.1	50.8	10	5	NBR
KL11-038/2	38.1	53.97	10.5	5	NBR
KL11-040	40	50	10.5	5	NBR
KL11-040/1	40	55	10.5	5	NBR
KL11-040/2	40	50	11	5	NBR
KL11-040/3	40	48	6.5	5	NBR
KL11-040/4	40	55	11	5	NBR
KL11-040/5	40	50	10	5	NBR
KL11-040/6	40	50	8	5	NBR
KL11-040/7	40	55	8	5	NBR
KL11-040/8	40	60	14.5	5	NBR
KL11-040/9	40	52	12	5	NBR
KL11-042	42	52	9	5	NBR
KL11-044	44.5	53.97	7	5	NBR
KL11-044/1	44.5	53.97	7.5	5	NBR
KL11-044/2	44.5	60.32	11.7	5	NBR
KL11-045	45	55	10.5	5	NBR
KL11-045/1	45	60	10.5	5	NBR
KL11-045/2	45	55	11	5	NBR
KL11-045/3	45	55	8	5	NBR
KL11-045/4	45	55	7.5	5	NBR
KL11-045/5	45	57	10	5	NBR
KL11-045/6	45	65	14.5	5	NBR
KL11-045/7	45	53	8.5	5	NBR
KL11-045/8	45	60	10	5	NBR
KL11-050	50	65	10.5	5	NBR
KL11-050/1	50	62	10	5	NBR
KL11-050/2	50	60	10.5	5	NBR
KL11-050/3	50	60	10	5	NBR
KL11-050/4	50	65	11	5	NBR
KL11-050/5	50	62	8	5	NBR
KL11-050/6	50	70	14	5	NBR
KL11-050/7	50	60	7.5	5	NBR
KL11-050/8	50	60	8	5	NBR
KL11-050/9	50	70	14.5	5	NBR
KL11-050/10	50	63	12	5	NBR
KL11-054	54	66	9.5	5	NBR
KL11-055	55	65	10.5	5	NBR
KL11-055/1	55	65	12	5	NBR
KL11-055/2	55	65	11	5	NBR
KL11-055/3	55	75	14	5	NBR
KL11-055/4	55	65	8	5	NBR
KL11-055/5	55	70	10.5	5	NBR
KL11-055/6	55	75	14.5	5	NBR
KL11-056	56	66	10.5	5	NBR
KL11-056/1	56	71	10.5	5	NBR
KL11-056/2	56	76	14.5	5	NBR
KL11-057	57.15	69.85	10	5	NBR
KL11-060	60	70	10.5	5	NBR
KL11-060/1	60	70	12.5	5	NBR
KL11-060/2	60	80	14	5	NBR
KL11-060/3	60	75	13	5	NBR
KL11-060/4	60	75	12.5	5	NBR
KL11-060/5	60	69	7	5	NBR
KL11-060/6	60	70	11	5	NBR
KL11-060/7	60	70	8	5	NBR
KL11-060/8	60	70	13	5	NBR
KL11-060/9	60	72	10	5	NBR
KL11-060/11	60	80	14.5	5	NBR
KL11-060/12	60	75	8	5	NBR
KL11-063	63	71	9	5	NBR
KL11-063/1	63	75	11	5	NBR
KL11-063/2	63	78	12.5	5	NBR
KL11-063/3	63	83	14.5	5	NBR
KL11-063/4	63.5	82.55	14.5	5	NBR
KL11-063/5	63.5	76.2	8.5	5	NBR
KL11-063/6	63.5	77.78	11.6	5	NBR
KL11-065	65	80	12.5	5	NBR
KL11-065/1	65	75	12.5	5	NBR
KL11-065/2	65	75	13.5	5	NBR
KL11-065/3	65	77	9.6	5	NBR
KL11-065/4	65	80	11.5	5	NBR
KL11-070	70	80	12.5	5	NBR
KL11-070/1	70	85	12	5	NBR
KL11-070/2	70	85	12.5	5	NBR
KL11-070/3	70	90	14	5	NBR
KL11-070/4	70	80	8	5	NBR
KL11-070/5	70	80	13	5	NBR
KL11-070/6	70	82	10.5	5	NBR
KL11-070/7	70	84	12.5	5	NBR
KL11-070/8	70	90	12	5	NBR
KL11-075	75	85	12.5	5	NBR
KL11-075/1	75	90	11	5	NBR
KL11-075/2	75	85	11	5	NBR
KL11-075/3	75	90	11.5	5	NBR
KL11-075/4	75	90	12.8	5	NBR
KL11-075/5	75	95	14.5	5	NBR
KL11-075/6	75	88	12.5	5	NBR
KL11-075/7	75	90	8	5	NBR
KL11-080	80	90	12.5	5	NBR
KL11-080/1	80	100	12.5	5	NBR
KL11-080/2	80	100	14	5	NBR
KL11-080/3	80	95	12	5	NBR
KL11-080/4	80	93	14.5	5	NBR
KL11-080/5	80	96	10.5	5	NBR
KL11-080/6	80	100	12	5	NBR
KL11-080/7	80	100	14.5	5	NBR
KL11-080/8	80	95	10	5	NBR
KL11-085	85	100	12.5	5	NBR
KL11-085/1	85	95	8	5	NBR
KL11-085/2	85	100	12	5	NBR
KL11-085/3	85	105	14.5	5	NBR
KL11-088	88.9	114.3	19.7	5	NBR
KL11-090	90	105	12.5	5	NBR
KL11-090/1	90	110	12.5	5	NBR
KL11-090/2	90	105	9.5	5	NBR
KL11-090/4	90	106.2	11	5	NBR
KL11-095	95	105	11	5	NBR
KL11-095/1	95	112	12	5	NBR
KL11-095/2	95	115	14.5	5	NBR
KL11-095/3	95	110	12	5	NBR
KL11-095/4	95	115	12	5	NBR
KL11-095/5	95	107	12.5	5	NBR
KL11-100	100	115	12.5	7	NBR
KL11-100/1	100	120	14	7	NBR
KL11-100/2	100	125	20	7	NBR
KL11-100/3	100	120	24.5	7	NBR
KL11-100/4	100	115	11.5	7	NBR
KL11-100/5	100	120	12	7	NBR
KL11-100/6	100	120	14.5	7	NBR
KL11-100/7	100	113	13.5	7	NBR
KL11-105	105	115	11	7	NBR
KL11-105/1	105	125	12.5	7	NBR
KL11-110	110	130	12.5	7	NBR
KL11-110/1	110	125	12	7	NBR
KL11-110/2	110	135	15.5	7	NBR
KL11-115	115	135	16	7	NBR
KL11-120	120	130	10.5	7	NBR
KL11-120/1	120	132.7	10	7	NBR
KL11-120/2	120	135	12.5	7	NBR
KL11-120/3	120	140	12.5	7	NBR
KL11-120/4	120	145	18.8	7	NBR
KL11-125	125	150	14	7	NBR
KL11-125/1	125	150	14.5	7	NBR
KL11-130	130	145	13	7	NBR
KL11-130/1	130	145	15	7	NBR
KL11-130/2	130	150	16	7	NBR
KL11-135	135	150	14	7	NBR
KL11-135/1	135	160	14	7	NBR
KL11-140	140	160	12	7	NBR
KL11-140/1	140	155	13	7	NBR
KL11-140/2	140	160	14.5	7	NBR
KL11-140/3	140	160	12.5	7	NBR
KL11-140/4	140	170	22.8	7	NBR
KL11-145	145	157.7	10	7	NBR
KL11-150	150	170	14	7	NBR
KL11-150/1	150	170	14.5	7	NBR
KL11-160	160	175	16	7	NBR
KL11-160/1	160	180	14.5	7	NBR
KL11-175	175	200	23	7	NBR
KL11-180	180	200	14.5	7	NBR
KL11-180/1	180	210	20.5	7	NBR
KL11-190	190	210	14.5	7	NBR
KL11-198	198	208	12	7	NBR
KL11-200	200	220	14.5	10	NBR
KL11-210	210	240	22.5	10	NBR
KL11-220	220	250	20.5	10	NBR
KL11-230	230	260	20.5	10	NBR
